GRB_Callback Class Reference

Class to define Gurobi callback function for factorization. More...

Inheritance diagram for GRB_Callback:

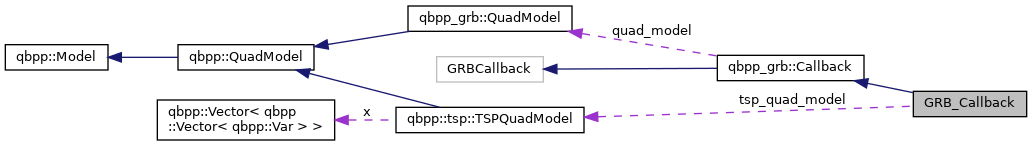

Collaboration diagram for GRB_Callback:

Public Member Functions
	GRB_Callback (const qbpp::tsp::TSPQuadModel &tsp_quad_model, qbpp::energy_t target_energy)
	Construct a new grb callback object. More...
void	callback () override
	callback function for Gurobi optimizer. More...
Sol	get_sol ()
	Get the solution obtained by Gurobi Optimizer. More...
void	set_target_energy (qbpp::energy_t target_energy)
	Set the target energy for Gurobi Optimizer. More...
void	abort_if_target_energy (qbpp::energy_t energy)
	Abort the optimization process if the target energy is achieved. More...
double	getDoubleInfoPublic (int what)
	Calls GetDoubleInfo() of GRBCallback. More...
double	getSolutionPublic (GRBVar v)
	Calls getSolution() of GRBCallback. More...

Protected Attributes
const QuadModel	quad_model
	QUBO model. More...
const GRBModel &	grb_model
	Shortcut to the GRBModel in QuadModel. More...
std::mutex	mtx
	Mutex to lock the critical section in get_sol() More...

Private Attributes
const qbpp::tsp::TSPQuadModel &	tsp_quad_model
std::optional< qbpp::energy_t >	target_energy

Detailed Description

Class to define Gurobi callback function for factorization.

Note

This Gurobi callback inherits from qbpp_grb::Callback.

Definition at line 18 of file tsp_grb.cpp.

Constructor & Destructor Documentation

GRB_Callback()

GRB_Callback::GRB_Callback ( const qbpp::tsp::TSPQuadModel &  tsp_quad_model, qbpp::energy_t  target_energy  )

inline

Construct a new grb callback object.

Parameters

tsp_quad_model	The TSP expression.
target_energy	The target energy.

Definition at line 26 of file tsp_grb.cpp.

Member Function Documentation

callback()

void GRB_Callback::callback ( )

inlineoverridevirtual

callback function for Gurobi optimizer.

The callback function is called by the Gurobi optimizer for every event. It displays the solution of the TSP when a new best solution obtained.

Reimplemented from qbpp_grb::Callback.

Definition at line 36 of file tsp_grb.cpp.

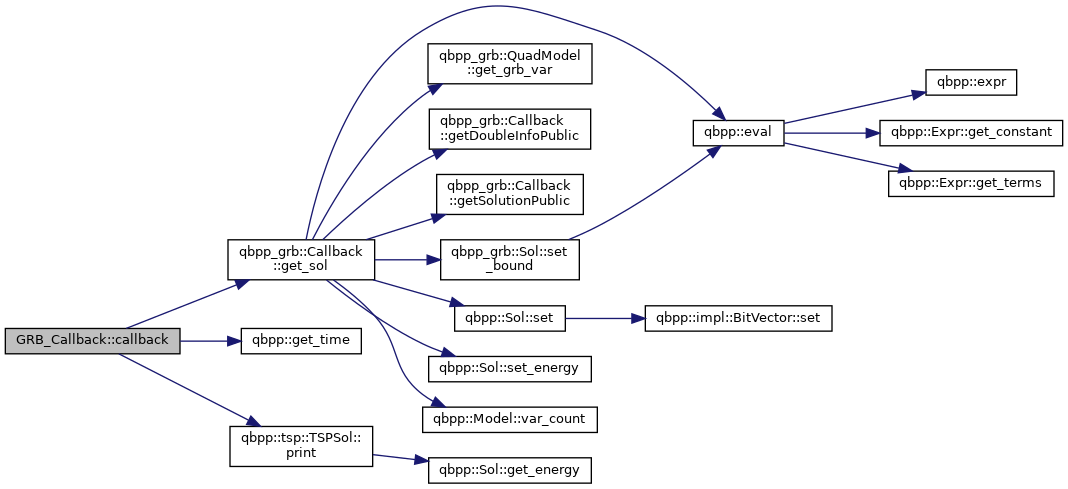

Here is the call graph for this function:

get_sol()

Sol qbpp_grb::Callback::get_sol ( )

inlineinherited

Get the solution obtained by Gurobi Optimizer.

Returns

Solution by Gurobi Optimizer

Definition at line 274 of file qbpp_grb.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

set_target_energy()

void qbpp_grb::Callback::set_target_energy ( qbpp::energy_t  target_energy )

inlineinherited

Set the target energy for Gurobi Optimizer.

Definition at line 194 of file qbpp_grb.hpp.

abort_if_target_energy()

void qbpp_grb::Callback::abort_if_target_energy ( qbpp::energy_t  energy )

inlineinherited

Abort the optimization process if the target energy is achieved.

Parameters

energy

Energy of the current solution

This function is intended to be called in callback() function.

Definition at line 201 of file qbpp_grb.hpp.

Here is the caller graph for this function:

getDoubleInfoPublic()

double qbpp_grb::Callback::getDoubleInfoPublic ( int  what )

inlineinherited

Calls GetDoubleInfo() of GRBCallback.

Parameters

what	what to get

Returns

double value

Definition at line 210 of file qbpp_grb.hpp.

Here is the caller graph for this function:

getSolutionPublic()

double qbpp_grb::Callback::getSolutionPublic ( GRBVar  v )

inlineinherited

Calls getSolution() of GRBCallback.

Parameters

v	Gurobi variable

Returns

double value

Definition at line 215 of file qbpp_grb.hpp.

Here is the caller graph for this function:

Member Data Documentation

tsp_quad_model

const qbpp::tsp::TSPQuadModel& GRB_Callback::tsp_quad_model

private

Definition at line 19 of file tsp_grb.cpp.

target_energy

std::optional<qbpp::energy_t> GRB_Callback::target_energy

private

Definition at line 20 of file tsp_grb.cpp.

quad_model

const QuadModel qbpp_grb::Callback::quad_model

protectedinherited

QUBO model.

Definition at line 152 of file qbpp_grb.hpp.

grb_model

const GRBModel& qbpp_grb::Callback::grb_model

protectedinherited

Shortcut to the GRBModel in QuadModel.

Definition at line 155 of file qbpp_grb.hpp.

mtx

std::mutex qbpp_grb::Callback::mtx

mutableprotectedinherited

Mutex to lock the critical section in get_sol()

Definition at line 164 of file qbpp_grb.hpp.

---

The documentation for this class was generated from the following file:

• sample/tsp_grb.cpp
