Solution holder to store the best solution of factorization. More...

Inheritance diagram for qbpp::factorization::SolHolder:

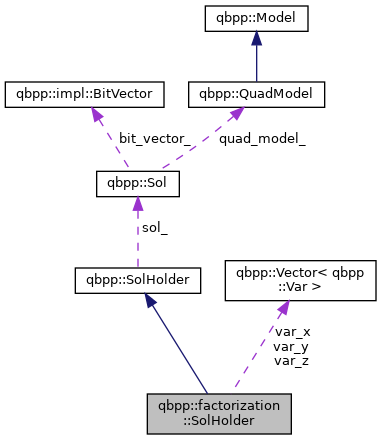

Collaboration diagram for qbpp::factorization::SolHolder:

[legend]

Public Member Functions
	SolHolder (const qbpp::QuadModel &quad_model, bool fix_lsb, const qbpp::Vector< qbpp::Var > &var_x, const qbpp::Vector< qbpp::Var > &var_y)
	Constructor with a quad_model. More...

	SolHolder (const qbpp::QuadModel &quad_model, bool fix_lsb, const qbpp::Vector< qbpp::Var > &var_z)
	Constructor with a quad_model. More...

	SolHolder (const SolHolder &sol_holder)=default

void	set_bound (int64_t bound)
	Sets the bound value of the best solution. More...

std::optional< int64_t >	get_bound () const
	Gets the bound value of the best solution. More...

std::string	get_bound_str () const
	Gets the bound value of the best solution as a string. More...

std::optional< double >	set_if_better (const qbpp::Sol &new_sol, const std::string &solver) override
	Sets new_sol as the best solution if it is better than the current best solution. More...

virtual std::optional< qbpp::Sol >	get_if_better (energy_t my_energy)

std::optional< qbpp::Sol >	get_if_better (const Sol &my_sol)

std::tuple< Sol, double, std::string >	get_sol_tts_solver () const

vindex_t	var_count () const

energy_t	get_energy () const

const Sol &	get_sol () const

Sol	copy_sol () const

void	clear ()

double	get_tts () const

std::string	get_solver () const

void	set_bound (energy_t bound)

	operator Sol () const

Protected Attributes
Sol	sol_

std::optional< energy_t >	bound_ = std::nullopt

double	startx_ = get_time()

double	tts_ {0.0}

std::string	solver_ = "N/A"

std::mutex	mtx_

Private Attributes
const bool	factorization_mode = true
	True if factorization, false if multiplication. More...

const bool	fix_lsb = false
	True if the MSBs and LSBs of x, y, and z are fixed. More...

const qbpp::Vector< qbpp::Var > &	var_x
	The vector of Var. More...

const qbpp::Vector< qbpp::Var > &	var_y
	The vector of Var. More...

const qbpp::Vector< qbpp::Var > &	var_z
	The vector of Var. More...

std::optional< int64_t >	bound = std::nullopt
	The bound of the best solution found by Gurobi. More...

std::mutex	mtx
	Mutex for thread safety in print function. More...

Detailed Description

Solution holder to store the best solution of factorization.

Note: Inherited from qbpp::SolHolder. Member variable "bound", which stores the bound of the best solution found by Gurobi, is added.

Definition at line 102 of file factorization.cpp.

Constructor & Destructor Documentation

◆ SolHolder() [1/3]

qbpp::factorization::SolHolder::SolHolder	(	const qbpp::QuadModel &	quad_model,
		bool	fix_lsb,
		const qbpp::Vector< qbpp::Var > &	var_x,
		const qbpp::Vector< qbpp::Var > &	var_y
	)

inline

Constructor with a quad_model.

Parameters

quad_model	The QUBO quad_model.
fix_lsb	True if the LSBs of x and y are fixed to 1.
var_x	The vector of Var.
var_y	The vector of Var.

Definition at line 124 of file factorization.cpp.

◆ SolHolder() [2/3]

qbpp::factorization::SolHolder::SolHolder	(	const qbpp::QuadModel &	quad_model,
		bool	fix_lsb,
		const qbpp::Vector< qbpp::Var > &	var_z
	)

inline

Constructor with a quad_model.

Parameters

quad_model	The QUBO quad_model.
fix_lsb	True if the LSBs of z are fixed to 1.
var_z	The vector of Var.

Definition at line 137 of file factorization.cpp.

◆ SolHolder() [3/3]

qbpp::factorization::SolHolder::SolHolder ( const SolHolder & sol_holder )

default

Member Function Documentation

◆ set_bound() [1/2]

void qbpp::factorization::SolHolder::set_bound ( int64_t bound )

inline

Sets the bound value of the best solution.

Parameters

bound The bound value.

Definition at line 150 of file factorization.cpp.

◆ get_bound()

std::optional<int64_t> qbpp::factorization::SolHolder::get_bound ( ) const

inline

Gets the bound value of the best solution.

Returns: int64_t The bound value.

Definition at line 154 of file factorization.cpp.

◆ get_bound_str()

std::string qbpp::factorization::SolHolder::get_bound_str ( ) const

inline

Gets the bound value of the best solution as a string.

Returns: std::string The bound value as a string.

Definition at line 158 of file factorization.cpp.

Here is the caller graph for this function:

◆ set_if_better()

std::optional<double> qbpp::factorization::SolHolder::set_if_better	(	const qbpp::Sol &	new_sol,
		const std::string &	solver
	)

inlineoverridevirtual

Sets new_sol as the best solution if it is better than the current best solution.

Parameters

new_sol	The new solution.
solver	The solver name.

Returns: std::optional<std::chrono::milliseconds> The time to solution if the current best solution is updated by new_sol.

Reimplemented from qbpp::SolHolder.

Definition at line 172 of file factorization.cpp.

Here is the call graph for this function:

◆ get_if_better() [1/2]

virtual std::optional<qbpp::Sol> qbpp::SolHolder::get_if_better ( energy_t my_energy )

inlinevirtualinherited

Definition at line 1616 of file qbpp.hpp.

Here is the call graph for this function:

◆ get_if_better() [2/2]

std::optional<qbpp::Sol> qbpp::SolHolder::get_if_better ( const Sol & my_sol )

inlineinherited

Definition at line 1626 of file qbpp.hpp.

Here is the call graph for this function:

◆ get_sol_tts_solver()

std::tuple<Sol, double, std::string> qbpp::SolHolder::get_sol_tts_solver ( ) const

inlineinherited

Definition at line 1630 of file qbpp.hpp.

◆ var_count()

vindex_t qbpp::SolHolder::var_count ( ) const

inlineinherited

Definition at line 1635 of file qbpp.hpp.

Here is the call graph for this function:

◆ get_energy()

energy_t qbpp::SolHolder::get_energy ( ) const

inlineinherited

Definition at line 1637 of file qbpp.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ get_sol()

const Sol& qbpp::SolHolder::get_sol ( ) const

inlineinherited

Definition at line 1639 of file qbpp.hpp.

Here is the caller graph for this function:

◆ copy_sol()

Sol qbpp::SolHolder::copy_sol ( ) const

inlineinherited

Definition at line 1641 of file qbpp.hpp.

Here is the caller graph for this function:

◆ clear()

void qbpp::SolHolder::clear ( )

inlineinherited

Definition at line 1646 of file qbpp.hpp.

Here is the call graph for this function:

◆ get_tts()

double qbpp::SolHolder::get_tts ( ) const

inlineinherited

Definition at line 1653 of file qbpp.hpp.

Here is the caller graph for this function:

◆ get_solver()

std::string qbpp::SolHolder::get_solver ( ) const

inlineinherited

Definition at line 1655 of file qbpp.hpp.

Here is the caller graph for this function:

◆ set_bound() [2/2]

void qbpp::SolHolder::set_bound ( energy_t bound )

inlineinherited

Definition at line 1657 of file qbpp.hpp.

◆ operator Sol()

qbpp::SolHolder::operator Sol ( ) const

inlineinherited

Definition at line 1661 of file qbpp.hpp.

Member Data Documentation

◆ factorization_mode

const bool qbpp::factorization::SolHolder::factorization_mode = true

private

True if factorization, false if multiplication.

Definition at line 104 of file factorization.cpp.

◆ fix_lsb

const bool qbpp::factorization::SolHolder::fix_lsb = false

private

True if the MSBs and LSBs of x, y, and z are fixed.

Definition at line 106 of file factorization.cpp.

◆ var_x

const qbpp::Vector<qbpp::Var>& qbpp::factorization::SolHolder::var_x

private

The vector of Var.

Definition at line 108 of file factorization.cpp.

◆ var_y

const qbpp::Vector<qbpp::Var>& qbpp::factorization::SolHolder::var_y

private

The vector of Var.

Definition at line 110 of file factorization.cpp.

◆ var_z

const qbpp::Vector<qbpp::Var>& qbpp::factorization::SolHolder::var_z

private

The vector of Var.

Definition at line 112 of file factorization.cpp.

◆ bound

std::optional<int64_t> qbpp::factorization::SolHolder::bound = std::nullopt

private

The bound of the best solution found by Gurobi.

Definition at line 114 of file factorization.cpp.

◆ mtx

std::mutex qbpp::factorization::SolHolder::mtx

mutableprivate

Mutex for thread safety in print function.

Definition at line 116 of file factorization.cpp.

◆ sol_

Sol qbpp::SolHolder::sol_

protectedinherited

Definition at line 1584 of file qbpp.hpp.

◆ bound_

std::optional<energy_t> qbpp::SolHolder::bound_ = std::nullopt

protectedinherited

Definition at line 1585 of file qbpp.hpp.

◆ startx_

double qbpp::SolHolder::startx_ = get_time()

protectedinherited

Definition at line 1586 of file qbpp.hpp.

◆ tts_

double qbpp::SolHolder::tts_ {0.0}

protectedinherited

Definition at line 1587 of file qbpp.hpp.

◆ solver_

std::string qbpp::SolHolder::solver_ = "N/A"

protectedinherited

Definition at line 1588 of file qbpp.hpp.

◆ mtx_

std::mutex qbpp::SolHolder::mtx_

mutableprotectedinherited

Definition at line 1589 of file qbpp.hpp.

The documentation for this class was generated from the following file:

sample/factorization.cpp
