qbpp::tsp::DrawSimpleGraph Class Reference

Class to draw a simple undirected graph. More...

#include <qbpp_tsp.hpp>

Public Member Functions
	DrawSimpleGraph ()=default
	Default constructor to create an empty graph. More...
void	add_node (int x, int y, const std::string &label="")
	Add a node to the graph. More...
void	add_node (std::pair< int, int > node, const std::string &label="")
	Add a node to the graph. More...
void	add_edge (unsigned int node1, unsigned int node2)
	Add an edge to the graph. More...
uint32_t	node_count () const
	Get the number of nodes in the graph. More...
uint32_t	edge_count () const
	Get the number of edges in the graph. More...
void	draw (std::string filename)
	Draw the graph in a file. More...

Private Attributes
std::vector< std::tuple< int, int, std::string > >	nodes
	List of nodes with coordinate (x, y) More...
std::vector< std::tuple< int, int > >	edges
	List of edges (node1, node2) More...

Detailed Description

Class to draw a simple undirected graph.

Note

Nodes must be numbered from 0 to size-1.

Graphvis must be installed to use this class.

Definition at line 206 of file qbpp_tsp.hpp.

Constructor & Destructor Documentation

DrawSimpleGraph()

qbpp::tsp::DrawSimpleGraph::DrawSimpleGraph ( )

default

Default constructor to create an empty graph.

Member Function Documentation

add_node() [1/2]

void qbpp::tsp::DrawSimpleGraph::add_node ( int  x, int  y, const std::string &  label = ""  )

inline

Add a node to the graph.

Parameters

x	x-coordinate of the node
y	y-coordinate of the node
label	Label of the node

Definition at line 221 of file qbpp_tsp.hpp.

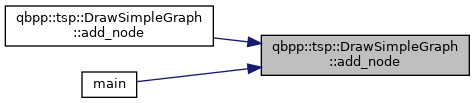

Here is the caller graph for this function:

add_node() [2/2]

void qbpp::tsp::DrawSimpleGraph::add_node ( std::pair< int, int >  node, const std::string &  label = ""  )

inline

Add a node to the graph.

Parameters

node	Pair of coordinates (x, y) of the node
label	Label of the node

Definition at line 227 of file qbpp_tsp.hpp.

Here is the call graph for this function:

add_edge()

void qbpp::tsp::DrawSimpleGraph::add_edge ( unsigned int  node1, unsigned int  node2  )

inline

Add an edge to the graph.

Parameters

node1	Index of the first node
node2	Index of the second node

Note

if node1 > node2, the nodes are swapped

Definition at line 235 of file qbpp_tsp.hpp.

Here is the caller graph for this function:

node_count()

uint32_t qbpp::tsp::DrawSimpleGraph::node_count ( ) const

inline

Get the number of nodes in the graph.

Definition at line 239 of file qbpp_tsp.hpp.

edge_count()

uint32_t qbpp::tsp::DrawSimpleGraph::edge_count ( ) const

inline

Get the number of edges in the graph.

Definition at line 242 of file qbpp_tsp.hpp.

draw()

void qbpp::tsp::DrawSimpleGraph::draw ( std::string  filename )

inline

Draw the graph in a file.

Parameters

filename

Name of the file to save the graph

Note

The file format is determined by the extension of the filename

The graph is drawn using the neato program from the Graphviz suite

Definition at line 248 of file qbpp_tsp.hpp.

Here is the caller graph for this function:

Member Data Documentation

nodes

std::vector<std::tuple<int, int, std::string> > qbpp::tsp::DrawSimpleGraph::nodes

private

List of nodes with coordinate (x, y)

Note

The graph is undirected

Definition at line 209 of file qbpp_tsp.hpp.

edges

std::vector<std::tuple<int, int> > qbpp::tsp::DrawSimpleGraph::edges

private

List of edges (node1, node2)

Definition at line 211 of file qbpp_tsp.hpp.

---

The documentation for this class was generated from the following file:

• sample/qbpp_tsp.hpp
