qbpp::tsp::TSPSol Class Reference

Class to store a Tour of the TSP. More...

#include <qbpp_tsp.hpp>

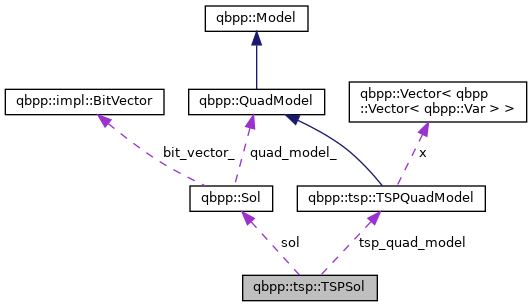

Collaboration diagram for qbpp::tsp::TSPSol:

Public Member Functions
	TSPSol (const TSPQuadModel &tsp_quad_model, const qbpp::Sol &sol)
	Generates a solution of the Traveling Salesman Problem (TSP) from a QUBO model and its solution. More...
uint32_t	operator[] (uint32_t index) const
	Get the node at index in the tour. More...
uint32_t	node_count () const
	Get the number of nodes in the tour. More...
void	print () const
	Print the tour. More...
void	print_matrix () const

Static Private Member Functions
static std::vector< uint32_t >	gen_tour (const TSPQuadModel &tsp_quad_model, const Sol &sol)
	helper function to generate a tour from the solution. More...

Private Attributes
const TSPQuadModel	tsp_quad_model
	QUBO expression for the Traveling Salesman Problem (TSP). More...
const Sol	sol
	Solution of the QUBO model. More...
const std::vector< uint32_t >	tour
	A vector of nodes representing the tour. More...

Detailed Description

Class to store a Tour of the TSP.

Definition at line 143 of file qbpp_tsp.hpp.

Constructor & Destructor Documentation

TSPSol()

qbpp::tsp::TSPSol::TSPSol ( const TSPQuadModel &  tsp_quad_model, const qbpp::Sol &  sol  )

inline

Generates a solution of the Traveling Salesman Problem (TSP) from a QUBO model and its solution.

Parameters

tsp_quad_model	The TSP QUBO expression
sol	The Solution of the QUBO model

Definition at line 163 of file qbpp_tsp.hpp.

Member Function Documentation

gen_tour()

std::vector< uint32_t > qbpp::tsp::TSPSol::gen_tour ( const TSPQuadModel &  tsp_quad_model, const Sol &  sol  )

inlinestaticprivate

helper function to generate a tour from the solution.

Parameters

tsp_quad_model	TSP QUBO expression
sol	Solution of the QUBO model

Returns

A vector of nodes representing the tour.

Definition at line 353 of file qbpp_tsp.hpp.

Here is the call graph for this function:

operator[]()

uint32_t qbpp::tsp::TSPSol::operator[] ( uint32_t  index ) const

inline

Get the node at index in the tour.

Parameters

index

Index of the node.

Returns

Node at index in the tour.

Definition at line 171 of file qbpp_tsp.hpp.

node_count()

uint32_t qbpp::tsp::TSPSol::node_count ( ) const

inline

Get the number of nodes in the tour.

Definition at line 174 of file qbpp_tsp.hpp.

Here is the call graph for this function:

print()

void qbpp::tsp::TSPSol::print ( ) const

inline

Print the tour.

Definition at line 177 of file qbpp_tsp.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

print_matrix()

void qbpp::tsp::TSPSol::print_matrix ( ) const

inline

Definition at line 187 of file qbpp_tsp.hpp.

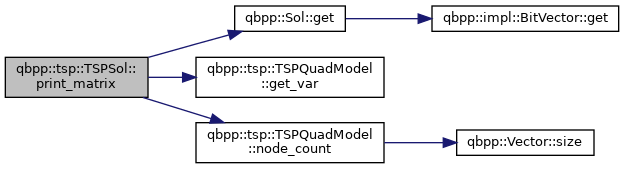

Here is the call graph for this function:

Member Data Documentation

tsp_quad_model

const TSPQuadModel qbpp::tsp::TSPSol::tsp_quad_model

private

QUBO expression for the Traveling Salesman Problem (TSP).

Definition at line 145 of file qbpp_tsp.hpp.

sol

const Sol qbpp::tsp::TSPSol::sol

private

Solution of the QUBO model.

Definition at line 147 of file qbpp_tsp.hpp.

tour

const std::vector<uint32_t> qbpp::tsp::TSPSol::tour

private

A vector of nodes representing the tour.

Definition at line 149 of file qbpp_tsp.hpp.

---

The documentation for this class was generated from the following file:

• sample/qbpp_tsp.hpp
