ABS2Callback Class Reference

Class to define ABS2 callback function for factorization. More...

Inheritance diagram for ABS2Callback:

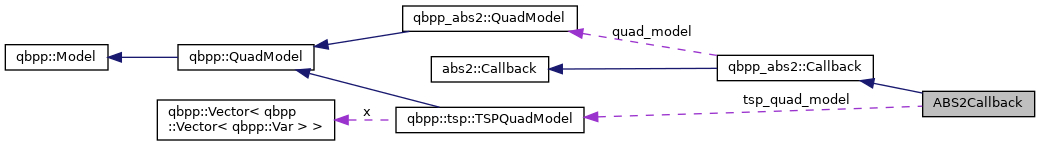

Collaboration diagram for ABS2Callback:

Public Member Functions
	ABS2Callback (const qbpp::tsp::TSPQuadModel &tsp_quad_model)
	Construct a new ABS2 callback object. More...
void	callback (const std::string &event) override
	Callback function for ABS2 solver. More...
Sol	get_sol () const
	Get the solution from the ABS2 solver. More...
void	set_hint (const Sol &hint)
	Provide a hint solution to the ABS2 solver. More...
void	set (const std::string &operation)
	Set the operation to the ABS2 Callback. More...
void	set (const std::string &operation, const std::string &operand)
	Set the operation and operand to the ABS2 Callback. More...
void	set (const Sol &hint)
	Provide a hint solution to the ABS2 solver. More...
const Sol &	get () const
	Get the current solution. More...

Protected Attributes
const QuadModel	quad_model
	QuadModel object created by QUBO++ library. More...

Private Attributes
const qbpp::tsp::TSPQuadModel &	tsp_quad_model
	The TSP expression. More...
std::shared_ptr< Impl >	pimpl

Detailed Description

Class to define ABS2 callback function for factorization.

Definition at line 17 of file tsp_abs2.cpp.

Constructor & Destructor Documentation

ABS2Callback()

ABS2Callback::ABS2Callback ( const qbpp::tsp::TSPQuadModel &  tsp_quad_model )

inline

Construct a new ABS2 callback object.

Parameters

tsp_quad_model

The TSP QuadModel.

Definition at line 24 of file tsp_abs2.cpp.

Member Function Documentation

callback()

void ABS2Callback::callback ( const std::string &  event )

inlineoverridevirtual

Callback function for ABS2 solver.

Parameters

event

The event name.

Reimplemented from qbpp_abs2::Callback.

Definition at line 29 of file tsp_abs2.cpp.

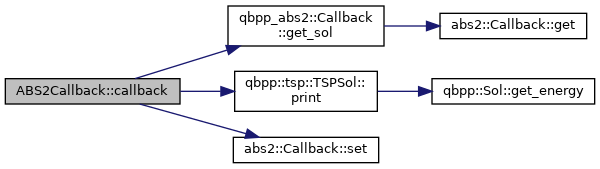

Here is the call graph for this function:

set() [1/3]

void abs2::Callback::set ( const std::string &  operation )

inherited

Set the operation to the ABS2 Callback.

Parameters

operation

Operation string

Set the operation to the ABS2 Callback.

Here is the caller graph for this function:

set() [2/3]

void abs2::Callback::set ( const std::string &  operation, const std::string &  operand  )

inherited

Set the operation and operand to the ABS2 Callback.

Parameters

operation	Operation string
operand	Operand string

Set the operation and operand to the ABS2 Callback.

set() [3/3]

void abs2::Callback::set ( const Sol &  hint )

inherited

Provide a hint solution to the ABS2 solver.

Parameters

hint	Hint solution

Provide a hint solution will be used by the ABS2 solver to improve the solution.

get()

const Sol& abs2::Callback::get ( ) const

inherited

Get the current solution.

Here is the caller graph for this function:

Member Data Documentation

tsp_quad_model

const qbpp::tsp::TSPQuadModel& ABS2Callback::tsp_quad_model

private

The TSP expression.

Definition at line 19 of file tsp_abs2.cpp.

quad_model

const QuadModel qbpp_abs2::Callback::quad_model

protectedinherited

QuadModel object created by QUBO++ library.

Definition at line 207 of file qbpp_abs2.hpp.

pimpl

std::shared_ptr<Impl> abs2::Callback::pimpl

privateinherited

Definition at line 288 of file abs2.hpp.

---

The documentation for this class was generated from the following file:

• sample/tsp_abs2.cpp
