API for calling the ABS2 QUBO solver from the QUBO++ Library. More...

Classes
class	qbpp_abs2::Solver
	A class for calling the ABS2 QUBO solver. More...

class	qbpp_abs2::QuadModel
	A class for storing both the qbpp::QuadModel and abs2::Model. More...

class	qbpp_abs2::Param
	A class for setting parameters for the ABS2 QUBO solver. More...

class	qbpp_abs2::Sol
	A class for storing the ABS2 QUBO solution. More...

class	qbpp_abs2::Callback
	A class for defining the ABS2 callback function. More...

Functions
Sol	qbpp_abs2::Solver::operator() (const QuadModel &quad_model, Param &param) const
	Executes ABS2 for "quad_model" with "param" and returns "sol". More...

Sol	qbpp_abs2::Solver::operator() (const QuadModel &quad_model, Param &param, const Sol &start) const
	Executes ABS2 for model with "param" and "start", and returns "sol". More...

	qbpp_abs2::Param::Param ()=default
	Construct a new Param object from a QuadModel object. More...

void	qbpp_abs2::Param::set_target_energy (qbpp::energy_t target_energy)
	Set the target energy for ABS2 QUBO solver. More...

std::optional< qbpp::energy_t >	qbpp_abs2::Param::get_target_energy () const
	Get the target energy for ABS2 QUBO solver. More...

void	qbpp_abs2::Param::set_time_limit (uint32_t time_limit)
	Set the time limit for ABS2 QUBO solver. More...

void	qbpp_abs2::Param::set_arithmetic_bits (uint32_t bits)
	Set the arithmetic bits. More...

	qbpp_abs2::Sol::Sol (const QuadModel &quad_model, const abs2::Sol &sol)
	Construct a new Sol object from an ABS2 solution. More...

	qbpp_abs2::Sol::Sol (const qbpp::Sol &sol)
	Construct a new Sol object from a QUBO++ QUBO solution. More...

	qbpp_abs2::Callback::Callback (const QuadModel &quad_model)
	Construct a new Callback object. More...

virtual	qbpp_abs2::Callback::~Callback ()=default
	Destructor for deleting a callback object. More...

Sol	qbpp_abs2::Callback::get_sol () const
	Get the solution from the ABS2 solver. More...

void	qbpp_abs2::Callback::set_hint (const Sol &hint)
	Provide a hint solution to the ABS2 solver. More...

virtual void	qbpp_abs2::Callback::callback (const std::string &event)
	The default callback function for ABS2 QUBO solver. More...

	qbpp_abs2::QuadModel::QuadModel (const qbpp::QuadModel &quad_model)
	Constructor: Create an ABS2 model from a QUBO model. More...

Detailed Description

API for calling the ABS2 QUBO solver from the QUBO++ Library.

This API provides a way to call the ABS2 QUBO solver from the QUBO++ Library. It includes the following classes:

Solver: A class for calling the ABS2 QUBO solver, derived from abs2::Solver.
QuadModel: A class for storing both the qbpp::QuadModel and abs2::Model, derived from qbpp::QuadModel and containing an abs2::Model object.
Param: A class for setting parameters for the ABS2 QUBO solver, derived from abs2::Param.
Sol: A class for storing the ABS2 QUBO solution, derived from qbpp::Sol and containing an abs2::Sol object.
Callback: A class for defining the ABS2 callback function, derived from abs2::Callback and containing a qbpp::QuadModel object.

Please refer to Sample Programs for examples of how to use these classes.

Function Documentation

◆ operator()() [1/2]

Sol qbpp_abs2::Solver::operator()	(	const QuadModel &	quad_model,
		Param &	param
	)		const

inline

Executes ABS2 for "quad_model" with "param" and returns "sol".

Parameters

quad_model	QuadModel object
param	ABS2 parameters

Returns: Sol QUBO solution

Definition at line 278 of file qbpp_abs2.hpp.

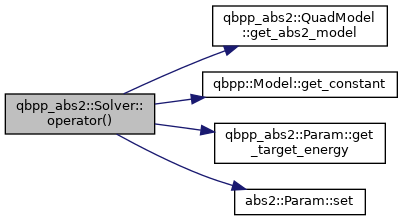

Here is the call graph for this function:

◆ operator()() [2/2]

Sol qbpp_abs2::Solver::operator()	(	const QuadModel &	quad_model,
		Param &	param,
		const Sol &	start
	)		const

inline

Executes ABS2 for model with "param" and "start", and returns "sol".

Parameters

quad_model	QuadModel object
param	ABS2 parameters
start	Initial solution

Returns: Sol QUBO solution

Definition at line 291 of file qbpp_abs2.hpp.

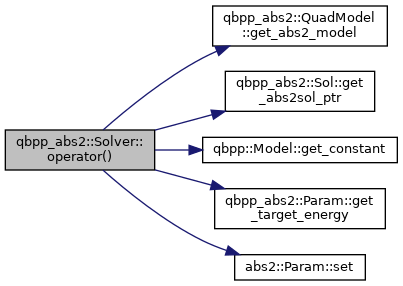

Here is the call graph for this function:

◆ Param()

qbpp_abs2::Param::Param ( )

default

Construct a new Param object from a QuadModel object.

Note: The default constructor can be omitted but defined for Doxygen.

◆ set_target_energy()

void qbpp_abs2::Param::set_target_energy ( qbpp::energy_t target_energy )

inline

Set the target energy for ABS2 QUBO solver.

Parameters

target_energy Target energy

Definition at line 120 of file qbpp_abs2.hpp.

Here is the caller graph for this function:

◆ get_target_energy()

std::optional<qbpp::energy_t> qbpp_abs2::Param::get_target_energy ( ) const

inline

Get the target energy for ABS2 QUBO solver.

Returns: Target energy

Definition at line 126 of file qbpp_abs2.hpp.

Here is the caller graph for this function:

◆ set_time_limit()

void qbpp_abs2::Param::set_time_limit ( uint32_t time_limit )

inline

Set the time limit for ABS2 QUBO solver.

Parameters

time_limit Time limit in seconds.

Definition at line 132 of file qbpp_abs2.hpp.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_arithmetic_bits()

void qbpp_abs2::Param::set_arithmetic_bits ( uint32_t bits )

inline

Set the arithmetic bits.

Parameters

bits	Number of bits for arithmetic: 32 or 64

Definition at line 138 of file qbpp_abs2.hpp.

Here is the call graph for this function:

◆ Sol() [1/2]

qbpp_abs2::Sol::Sol	(	const QuadModel &	quad_model,
		const abs2::Sol &	sol
	)

inline

Construct a new Sol object from an ABS2 solution.

Parameters

quad_model	ABS2 QUBO model
sol	ABS2 solution

Definition at line 308 of file qbpp_abs2.hpp.

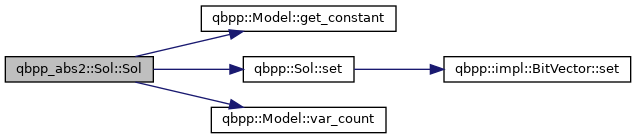

Here is the call graph for this function:

◆ Sol() [2/2]

qbpp_abs2::Sol::Sol ( const qbpp::Sol & sol )

inline

Construct a new Sol object from a QUBO++ QUBO solution.

Parameters

sol	QUBO++ QUBO solution

Definition at line 316 of file qbpp_abs2.hpp.

Here is the call graph for this function:

◆ Callback()

qbpp_abs2::Callback::Callback ( const QuadModel & quad_model )

inline

Construct a new Callback object.

Parameters

quad_model ABS2 QuadModel object

Definition at line 215 of file qbpp_abs2.hpp.

◆ ~Callback()

virtual qbpp_abs2::Callback::~Callback ( )

virtualdefault

Destructor for deleting a callback object.

Note: Do not delete the callback object.

Reimplemented from abs2::Callback.

◆ get_sol()

Sol qbpp_abs2::Callback::get_sol ( ) const

inline

Get the solution from the ABS2 solver.

Returns: Sol QUBO solution

Definition at line 222 of file qbpp_abs2.hpp.

Here is the call graph for this function:

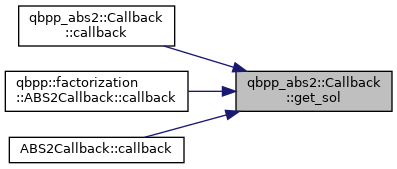

Here is the caller graph for this function:

◆ set_hint()

void qbpp_abs2::Callback::set_hint ( const Sol & hint )

inline

Provide a hint solution to the ABS2 solver.

Parameters

hint	Hint solution such as the best solution found so far.

Hint is given to the ABS2 solver to improve the solution.

Definition at line 227 of file qbpp_abs2.hpp.

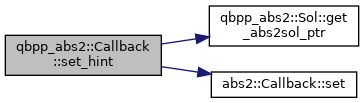

Here is the call graph for this function:

Here is the caller graph for this function:

◆ callback()

virtual void qbpp_abs2::Callback::callback ( const std::string & event )

inlinevirtual

The default callback function for ABS2 QUBO solver.

This function is called by ABS2 QUBO solver when an event occurs.

Parameters

event Event type specfied by ABS2 QUBO solver

Note: This is a default callback function that displays the TTS and the energy when a new best solution is obtained. This function can be customized by overriding it.

Implements abs2::Callback.

Reimplemented in ABS2Callback, and qbpp::factorization::ABS2Callback.

Definition at line 236 of file qbpp_abs2.hpp.

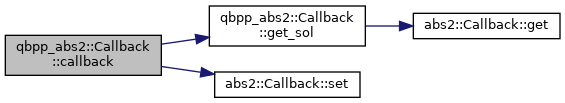

Here is the call graph for this function:

◆ QuadModel()

qbpp_abs2::QuadModel::QuadModel ( const qbpp::QuadModel & quad_model )

inline

Constructor: Create an ABS2 model from a QUBO model.

Parameters

quad_model qbpp::QuadModel object

Definition at line 254 of file qbpp_abs2.hpp.

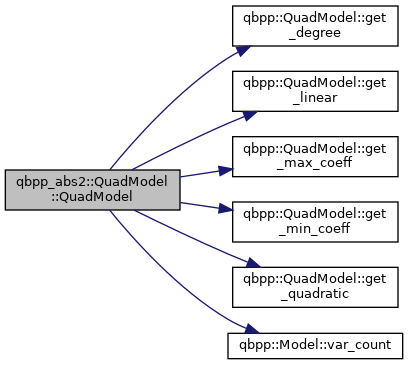

Here is the call graph for this function:
