qbpp::factorization::ABS2Callback Class Reference

Class to define ABS2 callback function for factorization. More...

Inheritance diagram for qbpp::factorization::ABS2Callback:

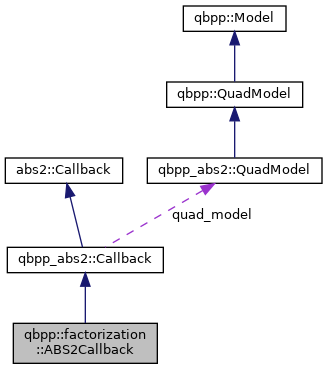

Collaboration diagram for qbpp::factorization::ABS2Callback:

Public Member Functions
	ABS2Callback (const qbpp_abs2::QuadModel &quad_model, std::shared_ptr< SolHolder > sol_holder_ptr)
	Construct a new ABS2Callback object for factorization. More...
void	callback (const std::string &event) override
	The default callback function for ABS2 QUBO solver. More...
Sol	get_sol () const
	Get the solution from the ABS2 solver. More...
void	set_hint (const Sol &hint)
	Provide a hint solution to the ABS2 solver. More...
void	set (const std::string &operation)
	Set the operation to the ABS2 Callback. More...
void	set (const std::string &operation, const std::string &operand)
	Set the operation and operand to the ABS2 Callback. More...
void	set (const Sol &hint)
	Provide a hint solution to the ABS2 solver. More...
const Sol &	get () const
	Get the current solution. More...

Protected Attributes
const QuadModel	quad_model
	QuadModel object created by QUBO++ library. More...

Private Attributes
const std::shared_ptr< SolHolder >	sol_holder_ptr_
	The solution holder. More...
std::shared_ptr< Impl >	pimpl

Detailed Description

Class to define ABS2 callback function for factorization.

Definition at line 201 of file factorization.cpp.

Constructor & Destructor Documentation

ABS2Callback()

qbpp::factorization::ABS2Callback::ABS2Callback ( const qbpp_abs2::QuadModel &  quad_model, std::shared_ptr< SolHolder >  sol_holder_ptr  )

inline

Construct a new ABS2Callback object for factorization.

Parameters

quad_model	The ABS2 quad_model.
sol_holder_ptr	The pointer to the solution holder given to the ABS2Callback.

Definition at line 211 of file factorization.cpp.

Member Function Documentation

callback()

void qbpp::factorization::ABS2Callback::callback ( const std::string &  event )

inlineoverridevirtual

The default callback function for ABS2 QUBO solver.

This function is called by ABS2 QUBO solver when an event occurs.

Parameters

event

Event type specfied by ABS2 QUBO solver

Note

This is a default callback function that displays the TTS and the energy when a new best solution is obtained. This function can be customized by overriding it.

Reimplemented from qbpp_abs2::Callback.

Definition at line 215 of file factorization.cpp.

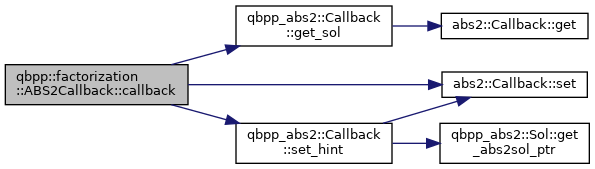

Here is the call graph for this function:

set() [1/3]

void abs2::Callback::set ( const std::string &  operation )

inherited

Set the operation to the ABS2 Callback.

Parameters

operation

Operation string

Set the operation to the ABS2 Callback.

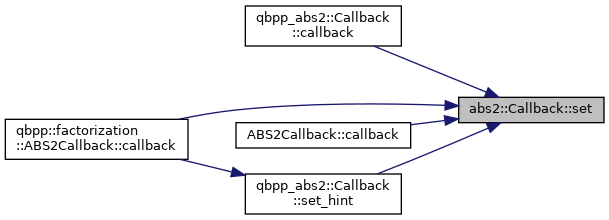

Here is the caller graph for this function:

set() [2/3]

void abs2::Callback::set ( const std::string &  operation, const std::string &  operand  )

inherited

Set the operation and operand to the ABS2 Callback.

Parameters

operation	Operation string
operand	Operand string

Set the operation and operand to the ABS2 Callback.

set() [3/3]

void abs2::Callback::set ( const Sol &  hint )

inherited

Provide a hint solution to the ABS2 solver.

Parameters

hint	Hint solution

Provide a hint solution will be used by the ABS2 solver to improve the solution.

get()

const Sol& abs2::Callback::get ( ) const

inherited

Get the current solution.

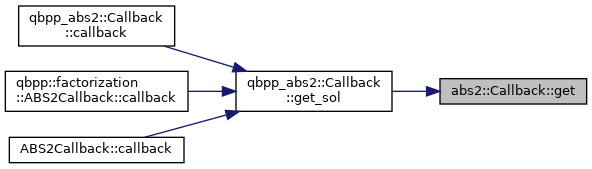

Here is the caller graph for this function:

Member Data Documentation

sol_holder_ptr_

const std::shared_ptr<SolHolder> qbpp::factorization::ABS2Callback::sol_holder_ptr_

private

The solution holder.

Definition at line 204 of file factorization.cpp.

quad_model

const QuadModel qbpp_abs2::Callback::quad_model

protectedinherited

QuadModel object created by QUBO++ library.

Definition at line 207 of file qbpp_abs2.hpp.

pimpl

std::shared_ptr<Impl> abs2::Callback::pimpl

privateinherited

Definition at line 288 of file abs2.hpp.

---

The documentation for this class was generated from the following file:

• sample/factorization.cpp
